Product Description

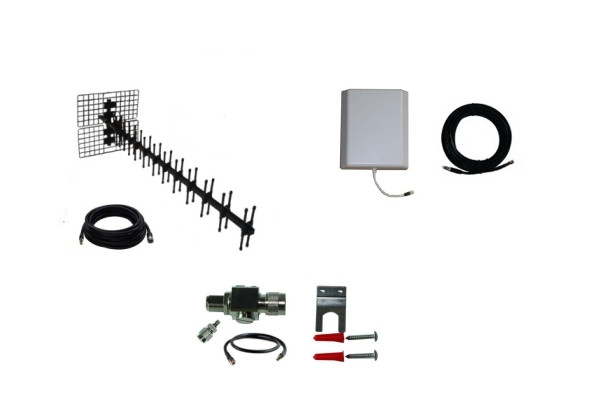

Building Edge Combo Pack includes:
- Building Edge Donor Antenna, Black Yagi/Grid, 10m Super Low Loss 400 grade cable, SMA/M.
- Panel Coverage Antenna, 6m Low Loss 195 grade cable, SMA/M.
- Lightning Arrester with cable and adapter.
For cable extensions - see ACCESSORIES below.
| Downloads | |||
 |
BC 18dBi Yagi Antenna Data Sheet | BC Coverage Panel Antenna Data Sheet |
BC LA1007 Lightning Arrester Data Sheet |
Specifications are subject to change without notice. Picture may not be exact model as described.
ACCESSORIES
 |
 |
 |
||||
| Adder Donor Cable 400 grade Super Low Loss /metre | Fascia Pole 1.8m Galvanised |
Other Details
| Mechanical Specification - CFG-DA57 18dBi Yagi Donor Antenna |
| Material | Aluminium, Anodised and Powder Coat Finish |
| Colour | Black |
| Nett Weight Grams | 1100 |
| Connector | SMA Male pigtail |
| Cable | 10m Super Low Loss LMR400 grade with SMA Male |
| Mounting Method | Pole-Mount Brackets, Suits pole diameter 25mm to 45mm |
| Dimensions mm | 1020(h) x 300(w) x 300(d) |
| Mechanical Specification - CFG-CA04 8dBi Panel Coverage Antenna |
| Material | UV Protected ABS |
| Colour | White |
| Nett Weight Grams | 350 |
| Connector | SMA Male |
| Cable | 6m LMR195 grade |
| Mounting Method | Wall Mount |
| Dimensions mm | 210(h) x 180(w) x 44(d) |

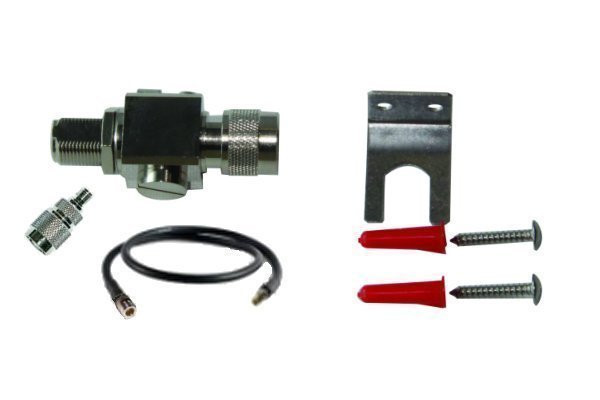

| Mechanical Specification - LA1007PT Lightning Arrester Kit |
| Material | Nickel Plated Brass |
| Colour | Silver |
| Nett Weight Grams | 130 |
| Connector | N Male and N Female + N Male to SMA Female Adapter |
| Cable | 25cm 195 grade pigtail |
| Mounting Method | Surface Mount |
| Dimensions mm | 22(h) x 68(w) x 32(d) |
Specifications are subject to change without notice.
