Product Description

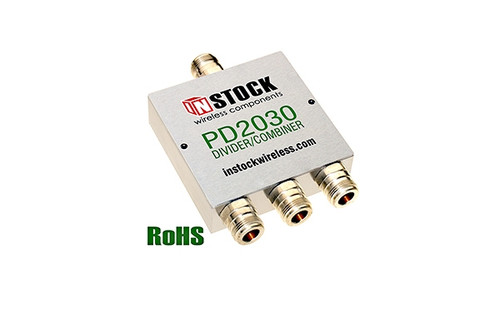

PD2030 Instock Wireless is a RoHS compliant, 3 way, wideband, 50 ohm, RF power divider, power combiner with type-N female coaxial connectors. All wireless band frequencies in the range from 698 to 2700 MHz are covered with optimal RF performance. Max microwave input power levels up to 40 watts can be handled in both power splitter and power combiner applications.
Product Overview
- Broadband Frequency (0.698 - 2.700 GHz)

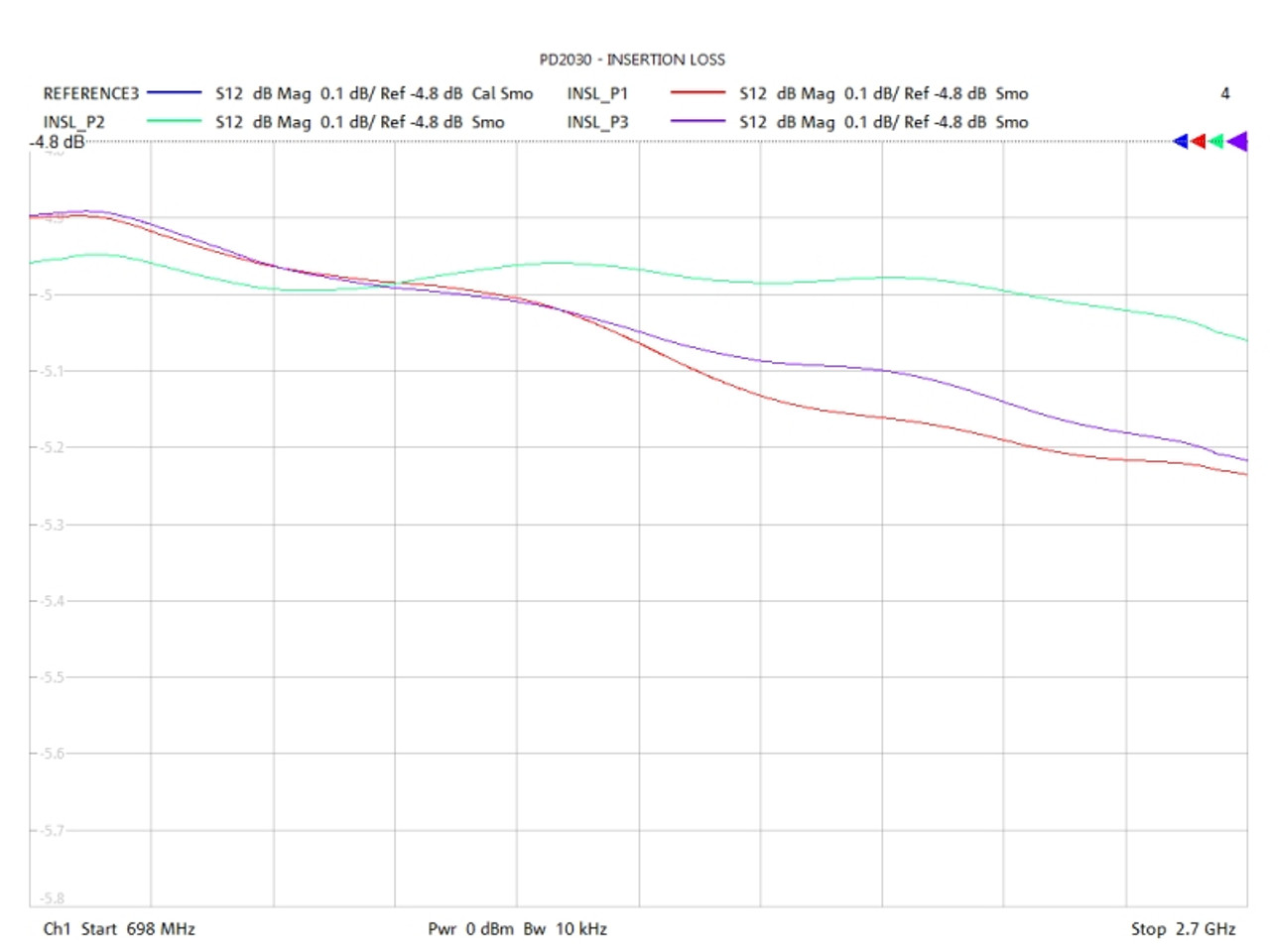

- Low Insertion Loss (0.3 dB avg)
- High Port to Port Isolation (30 dB avg)
- Excellent VSWR (1.10 : 1 avg)
- RoHS Compliant Splitter Construction
- Tri Alloy Type N Female (Jack) Low PIM
Specifications are subject to change without notice. Picture may not be exact model as described.
