Product Description
Enhance your cellular coverage with CEL-FI GO G41-NE, optimized for Vodafone’s network. Perfect for large homes, offices and commercial buildings. Includes amplifier module and mains power pack. Requires donor and coverage antenna. See ACCESSORIES below.
| Downloads | |||
 |
Cel-Fi Go G41 Data Sheet | ||

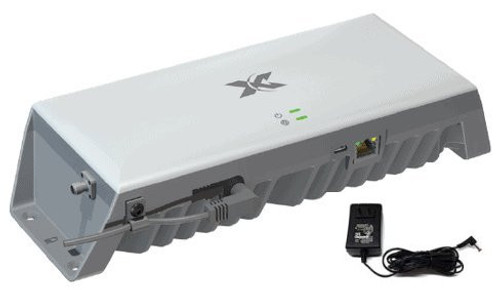

Cel-Fi Go G41 Smart Repeater represents the latest in 4G cellular repeater technology. Building on the success of the GO2 model, G41 has a higher output power (+20 dBm), providing the largest coverage area of all GO models.
The G41-NE has been optimized for use on the Vodafone network supporting 700Mhz (high portion of the band). The higher output power means more service antennas can be run from the one repeater, and by popular request, the unit now has an RJ45 Ethernet network interface for remote management.
Cel-Fi Go G41 Smart Repeater is ideal for large building cellular coverage applications for Vodafone. The higher output power means more service antennas can be run from the one repeater, and by popular request, the unit now has an RJ45 Ethernet network interface for remote management.
Expanding on GO2’s dual-band functionality, G41 supports carrier aggregation with 40 MHz of relay bandwidth.
Features:
- Optimised and locked to the Vodafone TPG network
- 3G: 2100MHz, 4G: 700H/ 850/ 1800/ 2100MHz
- 3G, 4G, VoLTE, NB-IoT (GO4 has 5G capabilities, but is currently not enabled or approved)
- Up to 3000 m2 coverage area
- Two bands simultaneously relay
- Total System Relay Bandwidth – Up to 40 MHz
- Remote Monitoring, Control, and Alert Capabilities via WAVE Portal (for approved installers)
- Ethernet Port for connection to internet source for live monitoring
Includes:
- Cel-Fi Go G41-NE Smart Repeater
- 240v Mains Power Supply
Installation should be carried out strictly in accordance with the Cel-Fi GO Quick Start Guide and any other information contained in the box. Misuse of this equipment or failure to follow the instructions in the Quick Start Guide could result in injury and equipment damage. In no event will Comnet Solutions be responsible or liable for either indirect or consequential damage or injury that may result from the installation or use of this equipment. Please contact our Support Team if you have any questions regarding the above precautions. Use our online Contact Form for quick response.
Specifications are subject to change without notice. Picture may not be exact model as described.
ACCESSORIES
Other Details
| Mechanical Specification - Cel-Fi GO 4 G41 Smart Repeater Module |
| Material | Powder Coated Aluminum |
| Colour | White |
| Nett Weight Grams | 2000 |
| Connector | SMA Female/SMA Female |
| Cable | n/a |
| Mounting Method | Surface Mount/4 Self-tapping screws included |
| Dimensions mm | 63(h) x 100(w) x 260(l) |
Specifications are subject to change without notice.
