Product Description

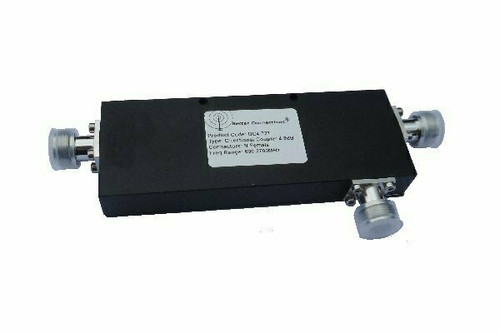

DC10-738 is a RoHS compliant, Low PIM, 10dBi Directional Coupler. All wireless band frequencies in the range from 698 to 3800 MHz are covered with optimal RF performance.
| Downloads | |||
 |
BC DC Series 738 Directional Coupler Data Sheet | ||
Product Overview
- Wide Frequency Band 700-3800MHz
- 2G/3G/4G/5G Coverage
- Low Passive Intermodulation (≤-140dBc@2*43dBm)
- Low VSWR & Insertion Loss
- High Isolation, Indoor Applications
- Ideal for In-building DAS solutions
- Tri Alloy Type N Female (Jack) Low PIM Connectors
Specifications are subject to change without notice. Picture may not be exact model as described.
Other Details
| Mechanical Specification |
| Material | Powder Coated Aluminium |
| Colour | Black or Cream |
| Nett Weight Grams | 250 |
| Connector | 3 x N Female |
| Cable | n/a |
| Mounting Method | Surface Mount |
| Dimensions mm | 85(w) x 150(l) x 34(h) |
Specifications are subject to change without notice.
